Factory Direct Automatic Straightening, Cutting and Thread Rolling All-in-One Machine for Screw Bolt Manufacturing

Brand Name : Heling Machine

Place of Origin : CHINA

Core components : Bearing, motor, pump

Payment Terms : T/T

Usage : Efficient Automation Fully automatic continuous operation, integrating multiple processes such as straightening, cutting, forming, and thread rolling, significantly improving production efficiency and reducing labor costs. Precision and Reliability Adoptin

Supply Ability : 80+SET+PER month

Color : Customizable

Package : wooden case

MOQ : 1pcs

After-sales service provided : Online support,Video technical support

Price : Welcome to Inquire

Packaging Details : wooden box

Voltage : 380V/440V/415V,50HZ/60HZ

Certification : 10221508

Delivery Time : 30-40 Work days

Name : Thread Rolling Equipment

Warranty : 1 Year

Model Number : M20-600

Core selling points : Easy to operate, long service life, high productivity, patented product, automatic, multi-functional, high precision

Contact Now

Versatile Automatic Cutting & Thread Forming Machine – Adapt to Various Fastener Sizes



Advanced automated solution integrating straightening, cutting, and thread forming processes for maximum efficiency and precision.

Key Features
  1. Fast Cycle Time – Boosts production efficiency by 30%+ compared to semi-automatic equipment.
  2. Reliable Continuous Running – Supports 24/7 uninterrupted operation for mass production demands.
  3. User-Friendly PLC Control – Intuitive touchscreen interface for easy parameter setting and operation.
  4. Energy-Saving Design – Low power consumption reduces long-term operational costs significantly.
Technical Specifications
Model

Max.Thread Diamete

(mm)

Max.U-Bolt Blank Length

(mm)

Main Motor(KW)

Straighten The Motor(KW)

Weight

(KG)

Capacity

(PCS/mm)

Volume(L*W*H)(m)
M5-60 5 60 4 1.5 950 45-70 1.5*0.9*1.5
M6-70 6 70 5.5 2.2 1100 45-70 1.65*1*1.6
M6-200 6 200 5.5 2.2 1850 45-60 1.65*1*1.6
M8-80 8 80 7.5 3 1800 45-70 2.3*1.5*1.86
M8-150 8 150 11 3 1850 45-70 2.5*1.5*1.95
M8-300 8 300 11 3 2200 45-60 2.5*1.5*1.95
M10-130 10 130 11 3 1900 45-70 2.55*1.5*1.95
M10-220 10 220 11 3 2300 45-70 2.55*1.5*1.95

M10-400

 10 400 11 3 2650 45-55 2.65*1.5*1.95

M10-500

 10 500 11 3 3100 35-55 2.75*1.5*1.95

M10-620

 10 620 11 3 3300 35-55 2.8*1.5*1.95

M12-160

 12 160 18.5 4 2700 40-60 2.8*1.5*2.25

M12-200

 12 200 18.5 4 2800 40-60 2.8*1.5*2.25

M12-300

 12 300 18.5 4 3300 40-60 2.9*1.5*2.25

M12-400

 12 400 18.5 4 3800 40-55 3.0*1.5*2.25

M12-500

 12 500 18.5 4 4300 35-45 3.2*1.5*2.35

M12-600

 12 600 18.5 4 4600 35-45 3.3*1.5*2.35

M14-200

 14 200 22 5.5 3850 45-60 2.9*1.5*2.4

M14-400

 14 400 22 5.5 4500 40-55 3.1*1.5*2.4

M14-500

 14 500 22 5.5 4700 35-45 3.2*1.5*2.4

M14-600

 14 600 22 5.5 5300 35-45 3.4*1.5*2.4

M16-200

 16 200 30 7.5 5700 40-50 3.2*1.95*2.65

M16-300

 16 300 30 7.5 6000 40-50 3.2*1.95*2.65

M16-400

 16 400 30 7.5 6300 35-45 3.2*1.95*2.65

M16-500

 16 500 37 7.5 6900 30-40 3.4*1.95*2.65

M20-400

 20 400 45 11 10000 35-45 3.5*2.05*3.2

M20-600

 20 600 45 11 11000 30-40 3.7*2.05*3.2

M24-600

 24 600 45 11 12000 30-40 3.8*2.2*3.2

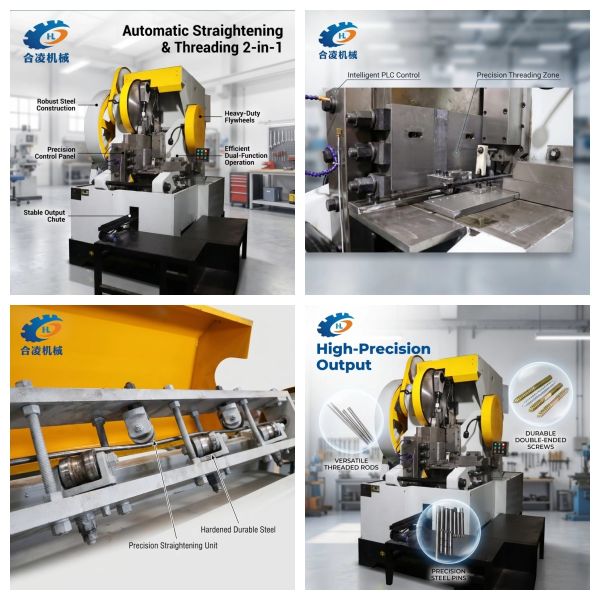

Product GalleryFactory Direct Automatic Straightening, Cutting and Thread Rolling All-in-One Machine for Screw Bolt Manufacturing

Factory Direct Automatic Straightening, Cutting and Thread Rolling All-in-One Machine for Screw Bolt ManufacturingFactory Direct Automatic Straightening, Cutting and Thread Rolling All-in-One Machine for Screw Bolt Manufacturing

Factory Direct Automatic Straightening, Cutting and Thread Rolling All-in-One Machine for Screw Bolt Manufacturing


Key Advantages
Independently developed transmission technology ensures stable, durable equipment with low failure rate. Full automation saves labor while low energy consumption controls operational costs. Quick response to non-standard customization requirements with timely after-sales service, adapting to diverse international procurement needs.
Factory & Exhibition ShowcaseFactory Direct Automatic Straightening, Cutting and Thread Rolling All-in-One Machine for Screw Bolt Manufacturing
Factory Direct Automatic Straightening, Cutting and Thread Rolling All-in-One Machine for Screw Bolt Manufacturing
